High Chromium Grinding cylpebs /cylinder Roller/Cast grinding Cylpebs

Publishdate:2021-05-24 Views:402


High Chromium Grinding cylpebs/cylinder Roller



Description

High chrome Grinding Cylpebs description:

Cast grinding Cylpebs/Roller/cylinder Roller is used for mining industries, cement plant , Lightweight brick plants .

1. High hardness: From 45 to 65 Breakage rate ≤ 1%;

2. Chromium percentage: customized

Super High Chrome: 15-26% High Chrome: Cr=10-13% Medium Chrome: Cr=3-6% Low Chrome: Cr=1.0-3.0%

3. Grinding cylpebs diameters from 8x10mmtoφ45x50mm

4. Characteristics: High hardness, good wear resistant, low breakage, no deformation.

5. Application: cement plant,AAC Plant - Autoclaved Aerated Concrete Plant ,Calcium silicate fiber- cement boards

Technical parameter



Chemical composition (%)
emical Composition(%)
C Si Mn Cr P s Mo Cu Ni
1.7-3.2 0.3-1.2 0 0.5-1.0 10-13 ≤0.10 ≤0.10 Minor Minor Minor
Hardness (HRC) Micro-structure
58-64 M+C
M -- Martensite C——Carbide
Diameter Ø8X10 Ø10X12 Ø12X14 Ø14X16 Ø16X18
(mm) Ø18X20 Ø20X25 Ø25X30 Ø30X35 Ø35X40

Specifications and Diameter Tolerance



Diameter (mm) Diameter Tolerance (mm)
φ8x10
φ10x12
φ12x14 1
φ14x16 -1
φ16x18
φ18x20
φ20x25
φ25x30
φ30x35
φ35x40 1.5
φ40x45 -1
φ45x50

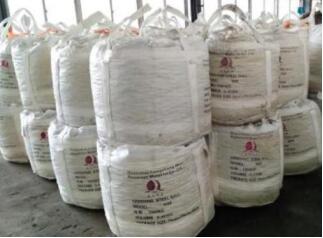

6. Packaging Methods:Heavy-duty Jumbo bag ,steel drum ,pelleted steel dru8.

Loading capacity of 20’ shipping container :25-27tons/20’CNTS

9.Loading capacity of  Jumbo Packaging Bags: Dia 8x10 toφ45x50mm mm-Dia150mm, 1000Kgs/ Bag (GW: 1002Kgs)
